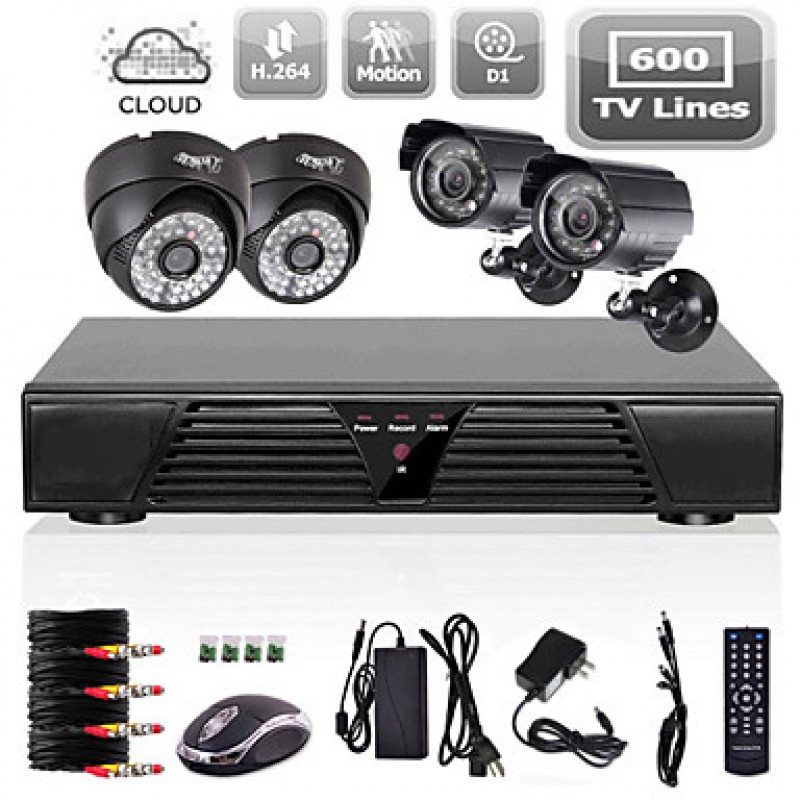

4CH CCTV Full D1 DVR Motion Detection 800TVL Outdoor Indoor Night Vision Camera System
- Price in reward points: 5000
- Product Code: 4CH CCTV Full D1 DVR Motion Detection 800TVL Outdoor Indoor Nigh
- Availability: In Stock
Tags: DVR Kits

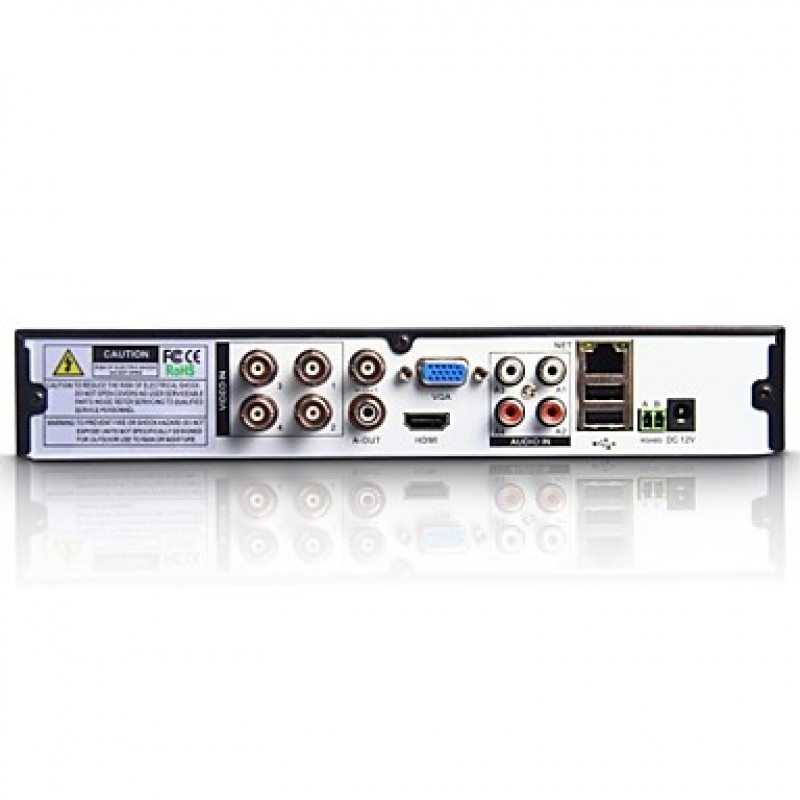

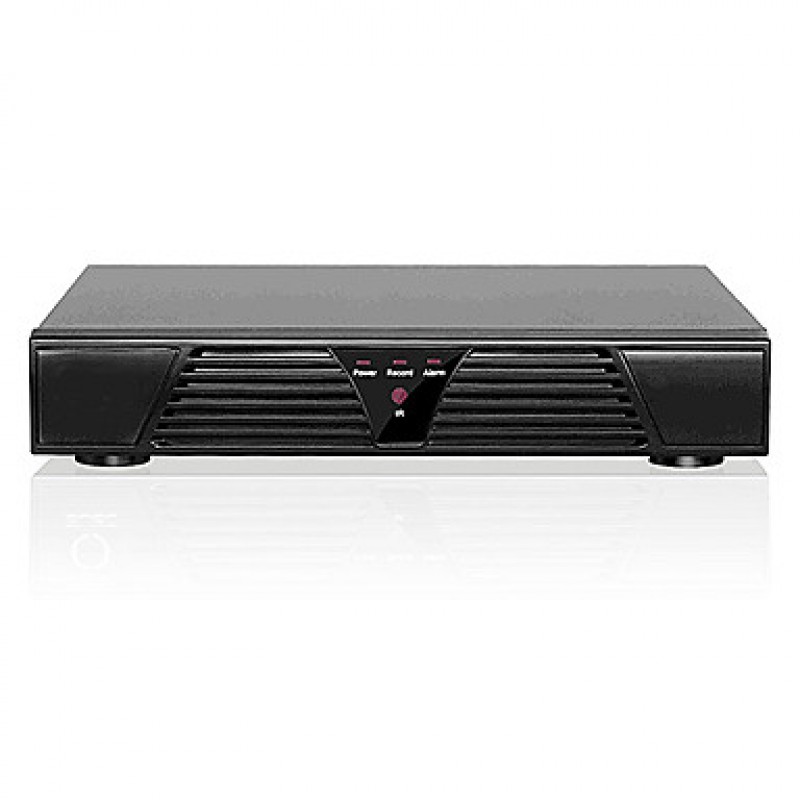

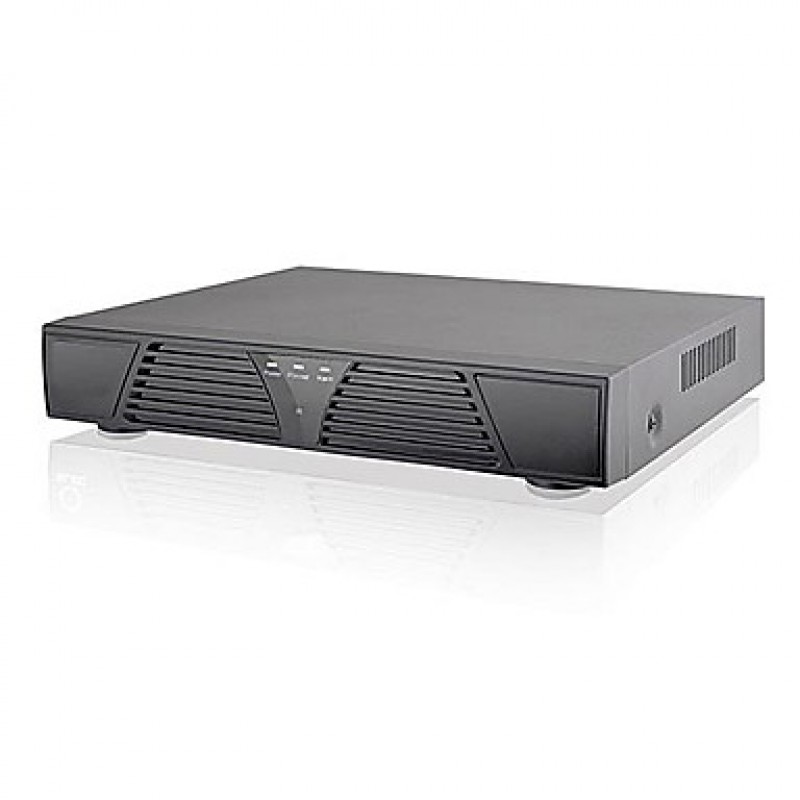

| DVR Parameters | |
|---|---|
| Video Compression | H.264, |
| Video System | NTSC/PAL, |
| Video Input/Output Interface | BNC, |
| Video Output | 1 Channel, |
| Other Video Output | VGA, |
| Audio Input / Output | RCA 1-Channel Input / RCA 1-Channel Output, |
| Display Frame Rate | NTSC: 120 fps @D1 / PAL: 100 fps @D1, |
| Display Resolution | NTSC: D1(704 x 480)/ PAL: D1(704 x 576), |
| Recording Frame Rate | NTSC: 120fps @D1 / PAL: 100 fps @D1, |
| Record Mode | Time Schedule,Manual/Schedule,Motion Detection, |
| Mobile Device OS Support | Blackberry,Windows Mobile,iOS,Android, |
| Network Function | Live Monitoring,IE Viewer,Mobile & Email Function,DVR Setting, |
| Net Protocol | DHCP and TCP/UDP, |
| Remote Access | Remote Client Software and IE Browser, |
| PTZ Control | RS-485, |
| HDD Interface | SATA, Support between 250GB and 2TB, |
| HDD Port | 1, |
| Built-in HDD | No, |
| Playback Mode | Normal Play,Frame by Frame,Fast Rewind,Fast Forward, |
| Synchronous Playback (Channel) | 4, |
| USB | USB Backup/USB 2.0, |
| Power Supply | 12V DC, |
| Dimensions (LxWxH) | 260x210x43, |

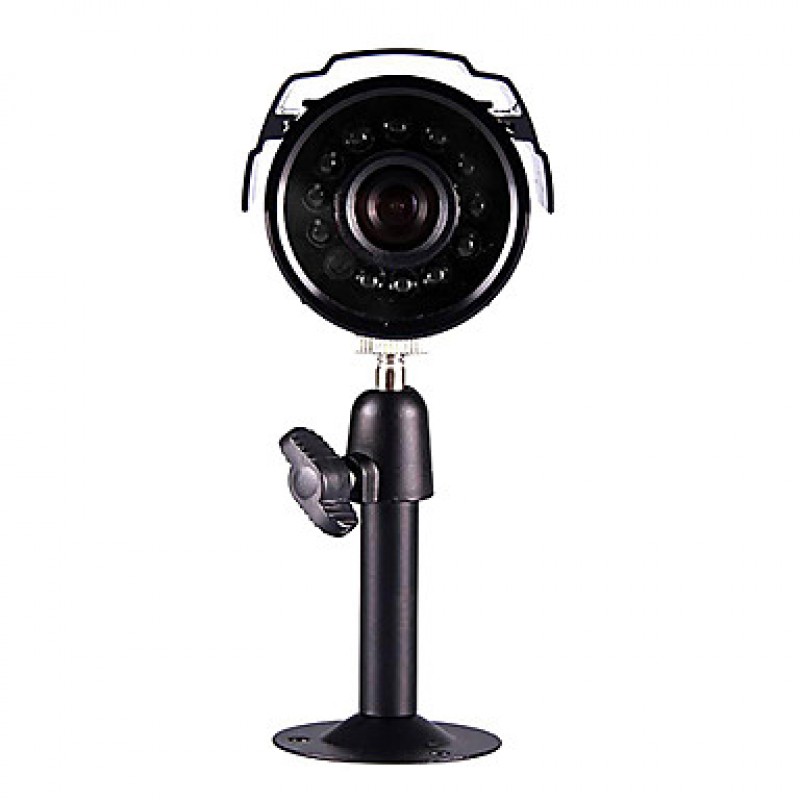

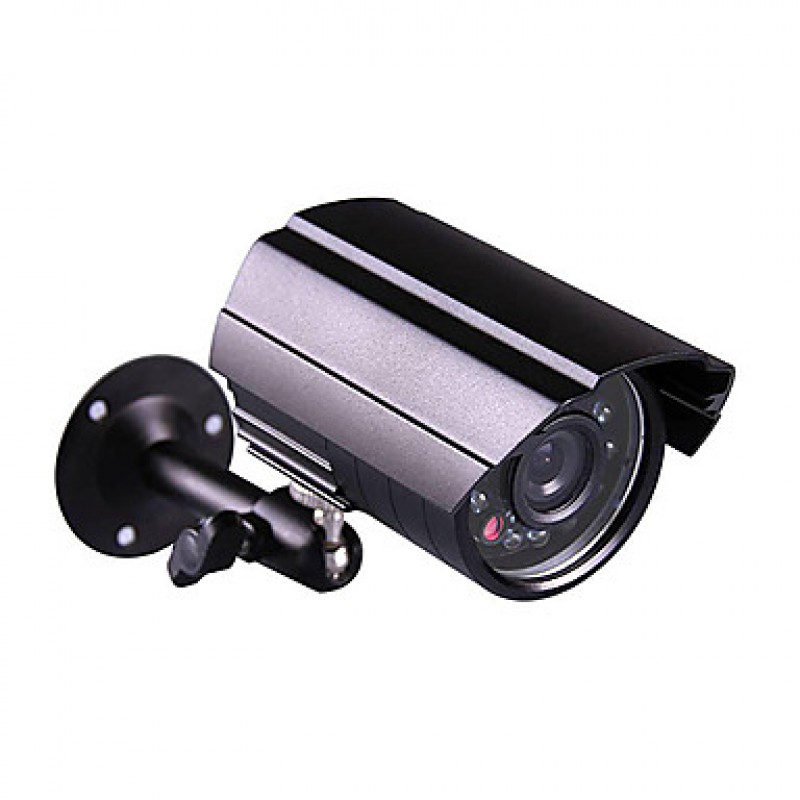

| Bullet Camera Parameters | |
| Bullet Camera Image Sensor | 1/4" Color CMOS, |
| TV System | PAL/NTSC, |
| Effective Pixels | NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V), |
| Horizontal Resolution | 800TVL, |
| Lens (mm) | 3.6, |
| Maximum IR Distance (m) | 20, |
| Features | Waterproof,Auto White Balance, |
| Minimum Illumination | 0.0 Lux, |
| S/N Ratio | ≧ 50dB, |
| Video Output | 1.0Vp-p, 75ohms, |
| Operating Temperature | -4°F~140°F / -20°C ~60°C, |
| Power | 12V DC, |
| Material | Metal Shell, |

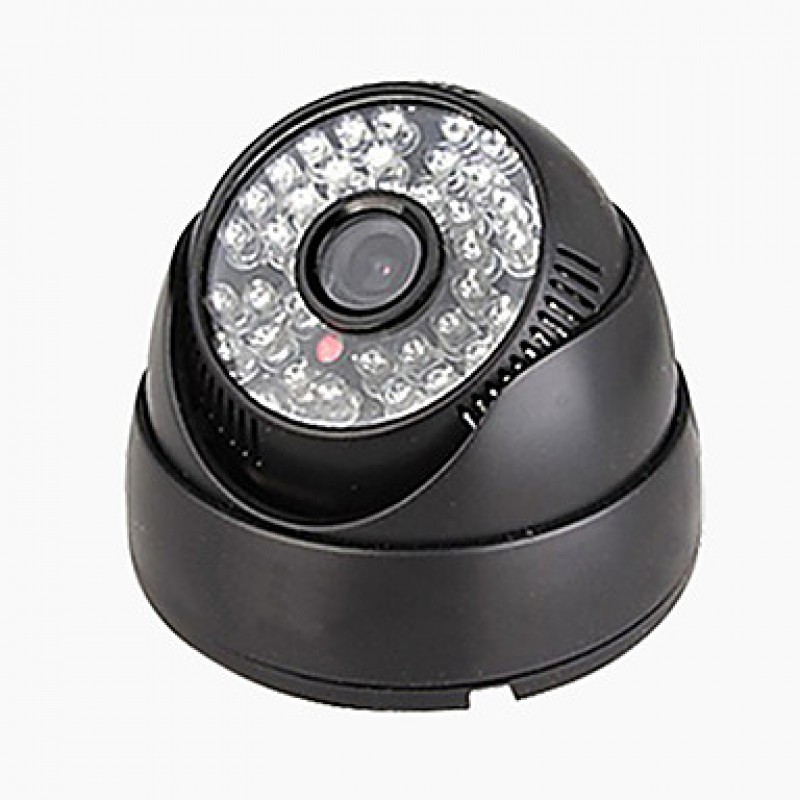

| Dome Camera Parameters | |
| Dome Camera Image Sensor | 1/4" Color CMOS, |
| TV System | PAL/NTSC, |
| Effective Pixels | NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V), |
| Horizontal Resolution | 800 TV-Lines, |
| Lens (mm) | 3.6, |
| Maximum IR Distance (m) | 20, |
| Features | Auto White Balance, |
| Minimum Illumination | 0.0 Lux, |
| S/N Ratio | ≧ 50dB, |
| Video Output | 1.0Vp-p, 75ohms, |
| Operating Temperature | -4°F~140°F / -20°C ~60°C, |
| Power | 12V DC, |
| Dimensions (LxWxH) | 70x70x50, |
| Material | Plastic Shell, |
| General | |
| Model | , |
| Home | Front door,Backyard,Garage, |
| Business | Street,School,Warehouse,Store,Office, |
| Camera Type | Dome Cameras + Bullet Cameras, |
| OSD Languages | Spanish,German,French,English,Japanese,Chinese,Polish,Italian, |
| What's in the box | User Manual - English,Remote Control,Mouse,DVR,12V Power Supply,66ft Cable,Dome Camera,Bullet Camera,1 To 4 DC Line, |
