Product Detail

1U NVR Set 720P/960P/1080P/Plug and Play/CMOS Sensor/ONVIF IP Camera N4B3M/Kit

0 reviews / Write a review

$154.99

Price in reward points: 5000

Product Code: 1U NVR Set 720P/960P/1080P/Plug and Play/CMOS Sensor/ONVIF IP Ca
Availability: In Stock

Qty

Tags: NVR Kits

Description
Reviews (0)

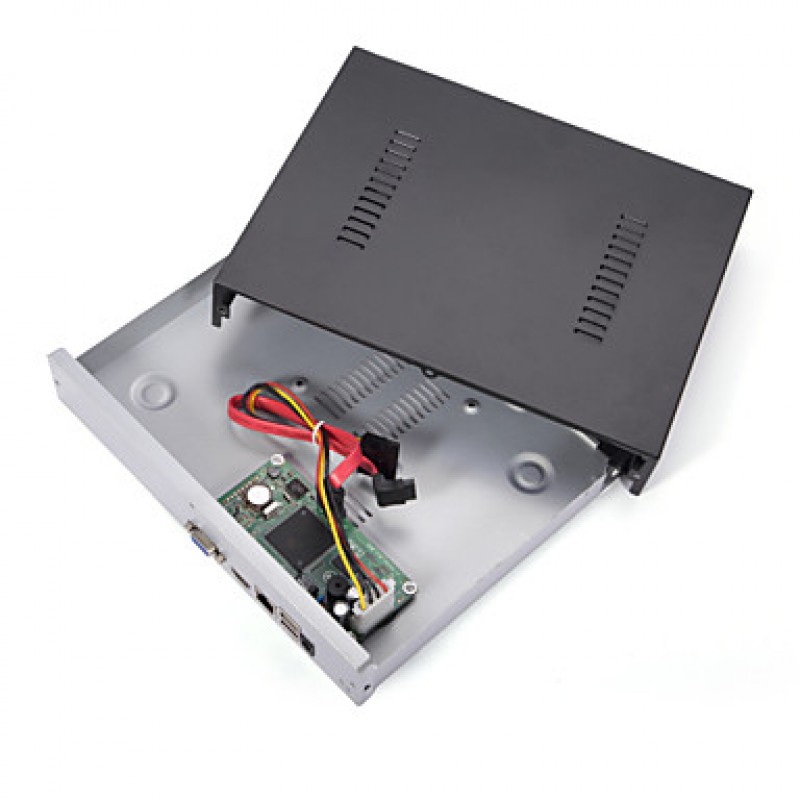

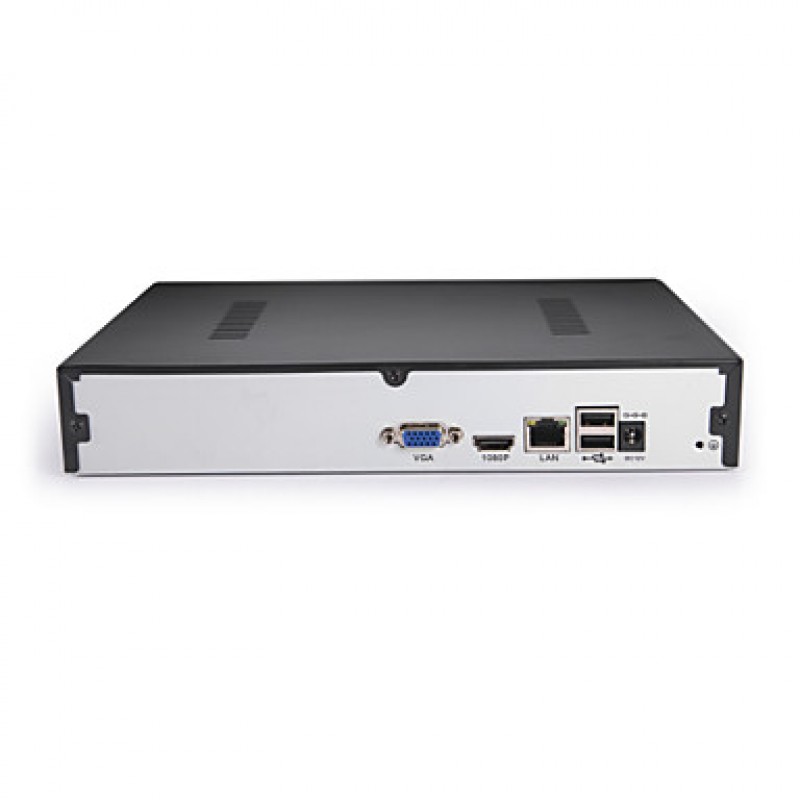

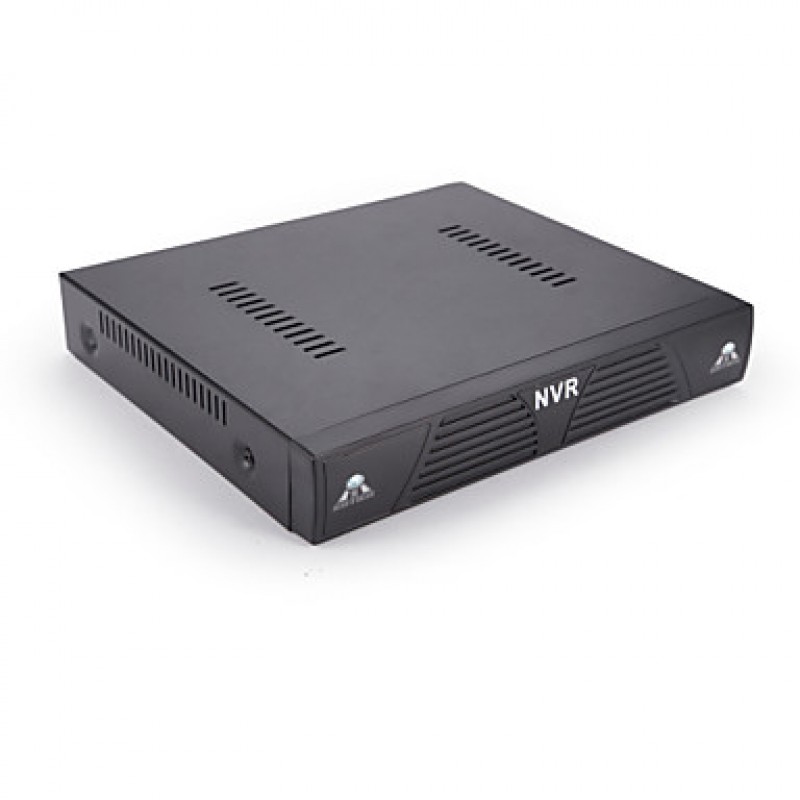

NVR
Operating system	Embedded LINUX Operating System,
Video Compression	H.264,
IP video input	4CH,
Video Output	VGA,
Audio Input / Output	RCA 4-Channel Input / RCA 1-Channel Output,
Recording resolution	1080P (19201080),960H (1280960),720P (1280*720),
Record Mode	Motion Detection,Manual,Alarm Triggered,
Playback Mode	Frame by Frame,
Synchronous Playback (Channel)	4,
HDD Interface	1 SATA (3.5"),
Capacity	Up to 4TB,
Network interface	1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces,
USB interface	2 USB 2.0 interfaces,
Application support	local and remote playback,
Motion detection	Yes,
Protocol support	P2P,DHCP,DNS/ DDNS,UDP,TCP/IP,
Smart phone	Android 2.3 up,IOS 5 up,
PTZ Control	PTZ,
Power Supply	12V/2A DC,
Power Consumption	IR on Max 2000mA,
Dimensions (LxWxH)	18.56.76.8cm,
Language	English,

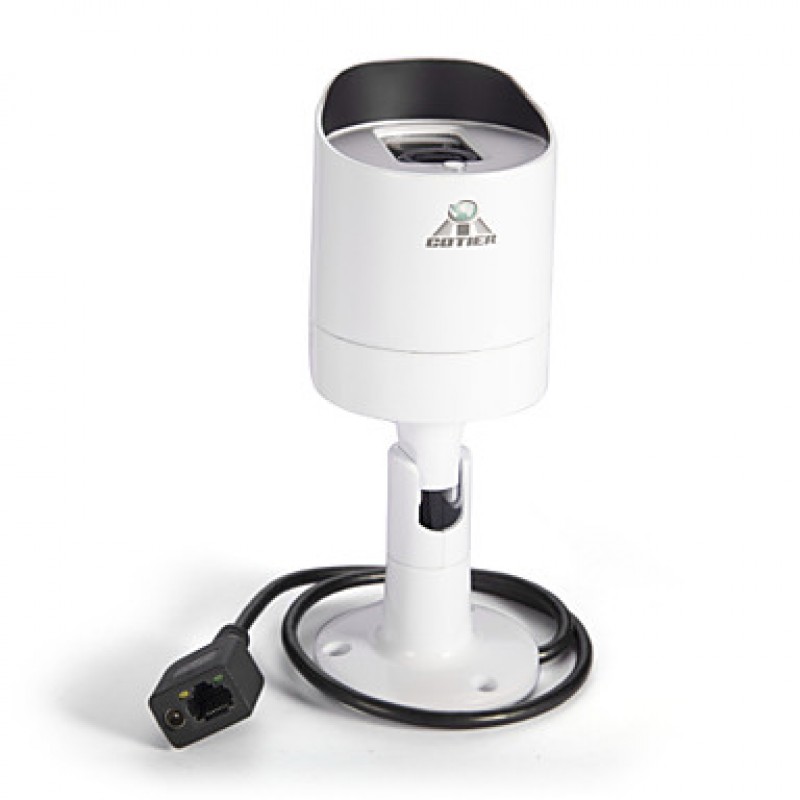

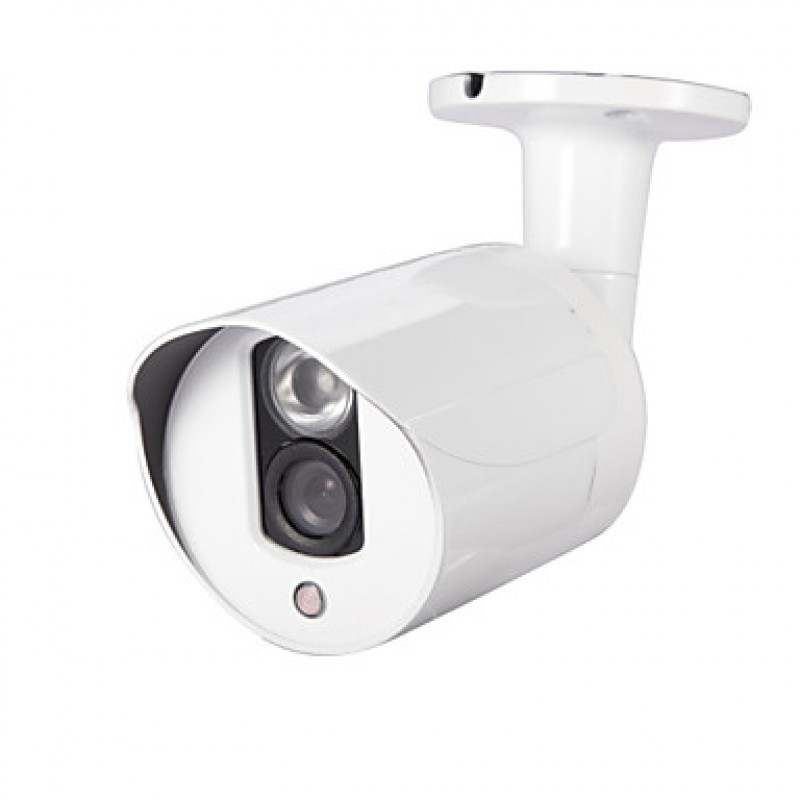

IP Camera Parameters
Video compression	H.264,
Lens	3.6mm,
Angle of view	85°,
Maximum IR Distance (FT)	20m,
Minimum Illumination	0.001 Lux,
Image resolution	720P (1280*720),
Record Mode	Alarm Triggered,Motion Detection,Manual,
Snapshot	Manual snapshot,
Image setting	Color,
Detection area setting	Video recording,
Audio	No,
Audio intercom	Support two-way audio intercom,
Communication interface	RJ45 10 / 100M self-adaptive,
Network protocols	DHCP,UPNP,DNS/ DDNS,UDP,P2P,
Function	PTZ,Dual stream,Regional mask,WDR,Gain control,Backlight balance,Waterproof,White balance,Two-Way Audio,
Alarm action	E-mail alarm,
Access protocol	ONVIF Ver.2.0,
User management	Multi-user management, account executives can assign permissions,
Security	User authentication,
Computer operating system	Win7,XP,
Weather proof	IP 66,
Smart phone	Android 2.3 up,IOS 5 up,
Operating Temperature	14°F~122°F / -10°C ~50°C,
Power	12V DC,
Dimensions (LxWxH)	25.521.54.4cm,
Gross Weight	1.1KG,
Material	Metal Shell,
General
Brand	Cotier,
OSD Languages	Chinese,English,

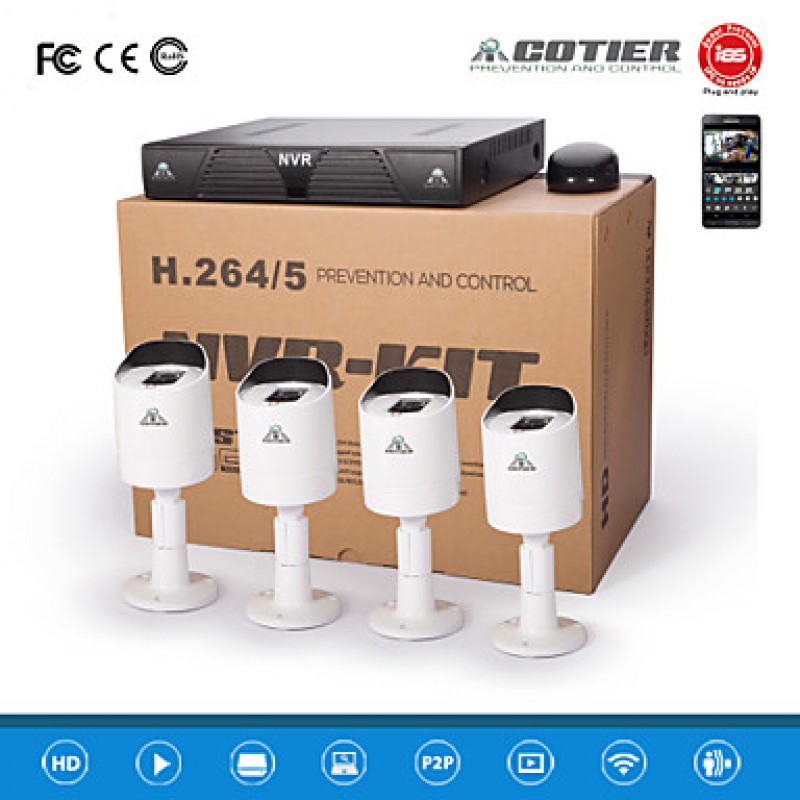

What's in the box	4 x Bullet IP Camera,5 x Power Supply,1 x User Manual - English,1 x Software CD,1 x Mouse,1 x NVR,
